Lifetime vs. Coating Thickness
One of my customers asked me if I could guarantee the lifetime of the zinc coating to last over 30 years and if I could put a little extra zinc on the part to make it last longer because he heard that the lifetime was directly related to the zinc coating thickness?

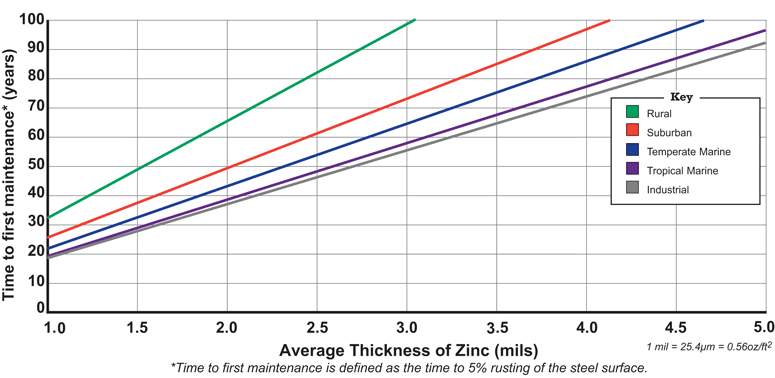

The idea of a guaranteed coating lifetime has been around almost as long as the galvanizing process. People build galvanized steel structures and want to know that they will last for many years. The guarantee of a specific number of years of service is very difficult to meet because of the many variables associated with the corrosion performance of a hot dip galvanized coating, The following chart shows the lifetime predictions of hot-dip galvanized coatings in various environments. The thicker the zinc coating, the longer the coating is going to survive, no matter what the environment is going to do. The values used to formulate the curves on this chart were taken from data gathered by various researchers in the 1940s and 1950s. The information on the environmental situation in those years is very clear that the pollution level and air quality were significantly different than today. Strong effort over the last twenty years have improved the air quality and reduced the amount of sulfur dioxide in the environment which has a direct effect on the corrosion rate of zinc coated steel.
The reduction in air pollutants has been so dramatic that there are no "heavy industrial" regions left in the United States. The other regions have also improved their ratings by removing harmful materials from the air and requiring stricter rules on industrial facilities. and air exhaust.
This is good news for the hot-dip galvanizing industry because the improvements in air quality also improve the lifetime of the galvanized coatings. This leads to the conclusion that our chart of service life versus coating thickness does not accurately reflect the situation of zinc coatings in today's atmospheric environment. We are underestimating the galvanized coating service life on this chart. Efforts are now underway to produce an updated version of this chart for our publications. There have been a number of atmospheric life tests in recent years that can contribute data to a new chart.
There are many views on the original question about whether to offer a guarantee on a galvanized steel product. Some view this as a problem for someone else down the road, others view this as a demonstration of the quality of the galvanized coating as a corrosion protection material, while others are determined to have nothing to do with any guarantees. If the guarantee is written correctly and takes exception to any unusual corrosion situations, then the service life chart can be used to project the expected lifetime of the galvanized product. Remember that the guarantee must be written correctly and cannot be a blanket statement of minimum service lifetime.
© 2023 American Galvanizers Association. The material provided herein has been developed to provide accurate and authoritative information about after-fabrication hot-dip galvanized steel. This material provides general information only and is not intended as a substitute for competent professional examination and verification as to suitability and applicability. The information provided herein is not intended as a representation or warranty on the part of the AGA. Anyone making use of this information assumes all liability arising from such use.
KPFF - Portland
Hi, I would like to confirm the coating thickness required for a humid, marine environment in Hawaii. I am thinking of specifying a galv. thickness of 4.5 mils. Is this appropriate. Thanks
Hi Kpff Portland, For batch hot-dip galvanizing structural steel per ASTM A123, you simply specify this standard. The thickness of the galvanizing is not specified by you, but is instead determined using Tables 1 and 2 within ASTM A123 which outlines minimum thickness requirements based on thickness of the steel and type of steel product (structural shapes vs. plate vs tube, etc.). Thickness is not specified for specific exposure environments (i.e. industrial, marine, rural, etc.) In order to determine how long batch hot-dip galvanizing will last in a marine environment (generally), the AGA has developed charts to assist you. For a conservative estimate, refer to the minimum galvanizing thickness per ASTM A123 for your material catetgory and thickness, and use this value (in mils) to see the time to first maintenance which can be achieved. The chart and instructions are available here: https://galvanizeit.org/education-and-resources/resources/technical-faq-dr-galv/estimating-the-life-expectancy-of-hot-dip-galvanized-coating
Dear Sir/Madame I am very interested in knowing if the are studies where lifetime of hot-dip galvanized coatings of products in contact with drinking water in water supply o domestic systems has been evaluated. Moreover which are the main factors influencing depletion of Zn layer? Thank you
Hi Camilla, Galvanized steel is a suitable application for potable water as most potable waters have a pH range from 5-8.5. However, corrosion rates vary depending on the level of impurities. When specifying the use of hot-dip galvanizing for potable water, check any local or national regulations on the use of HDG. Information on the water properties that affect corrosion rate are discussed in our guide to HDG Performance in Water: https://galvanizeit.org/knowledgebase/article/the-performance-of-hot-dip-galvanized-steel-in-water-environments
Marben Mariño Enraca
How much the maximum coating required for hot dip galvanized steel?
