Galvanize It! Online Seminar

ASTM A123 for Structural Steel Products

Single Fabrication with Multiple Material Categories
Figure 11: Single Fabrication with Multiple Material Categories

The specification ASTM A123/A123M covers individual steel pieces as well as assemblies of various classes of material. The six material categories covered in ASTM A123/A123M include structural shapes, strip and bar, plate, pipe and tubing, wire, and reinforcing bar.  A fabrication can have more than one material category such as a frame assembly. Any combination of these products can be assembled into a single fabrication and then hot-dip galvanized (Figure 11).

It is the responsibility of the designer and fabricator to ensure the product has been properly designed and built before hot-dip galvanizing. The galvanizer should be informed of any necessary special instructions or requests, preferably in writing on the purchase order, before the materials are shipped to the galvanizing plant.

It is the responsibility of the galvanizer to ensure compliance with the specifications, as long as the product has been designed and fabricated in accordance with the supporting specifications. However, if the galvanizer has to perform additional work in order to prepare the product for hot-dip galvanizing, such as drilling holes to facilitate drainage or venting, it should be approved by the customer. Once the material has been hot-dip galvanized, it can be fully inspected at the galvanizing plant prior to shipment.

Any materials rejected by an inspector for any reason except embrittlement may be stripped, regalvanized, and resubmitted for inspection. The ASTM specifications A143/A143M, ASTM A384/A384M, and ASTM A385 provide guidelines for preparing products for hot-dip galvanizing. The requirements listed in ASTM A123/A123M include coating thickness, finish, appearance, and adherence. These are each defined below and discussed in more detail later in this course.

ASTM A123/A123M Requirements

  • Coating Thickness / Weight  dependent upon material category and steel thickness
  • Finish  continuous, smooth, uniform
  • Appearance  free from uncoated areas, blisters, flux deposits and gross dross inclusions as well as having no heavy zinc deposits that interfere with intended use
  • Adherence  the entire coating should have a strong adherence throughout the service life of galvanized steel

The hot-dip galvanized coating is intended for products fabricated into their final shape that will be exposed to corrosive environmental conditions. Once a product has been hot-dip galvanized, any further fabrication, which rarely occurs, may have negative effects on the corrosion protection of the coating. The coating grade is defined as the required thickness of the coating and is given in microns. All coating thickness requirements in specification ASTM A123/A123M, (Tables 1 and 2), are minimums; there are no maximum coating thickness requirements in the specification.

The time to first maintenance of hot-dip galvanized steel is directly proportional to the thickness of the zinc coating. With all other variables held constant, the thicker the zinc coating, the longer the life of the steel. The aim of the finish and appearance requirements is to ensure there are no problem areas deficient of zinc or with surface defects that interfere with the intended use of the product. In addition, the coating should have a strong adherence throughout the service of the hot-dip galvanized steel.

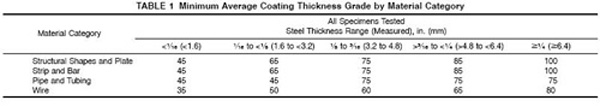

Table 1: Minimum Average Coating Thickness Grade by Material Category
All Specimens Tested
Steel Thickness Range (Measured) in. [mm]
Material Category<1/16
[<1.6]
>1/16 to <1/8
[>1.6 to <3.2]

>1/8 to 3/16
[>3.2 to < 4.8]

>3/16 to <1/4
[>4.8 to <6.4]
>1/4 to <5/8
[>6.4 to <16.0]
>5/8
[>16.0]
Structural Shapes45657575100100
Strip and Bar4565757575100
Plate4565757575100
Pipe & Tubing454575757575
Wire355060658080
Reinforcing Bar--------100100

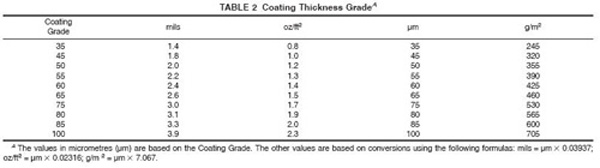

Table 2: Coating Thickness GradeA
Coating Grademilsoz/ft2µmg/m2
351.4.835245
451.81.045320
502.01.250355
552.21.355390
602.41.460425
652.61.565460
753.01.775530
803.11.980656
853.32.085600
1003.92.3100705

A: The values in micrometres µm are based o nCoating Grade. The other values are based on conversions using the following formulas: mils=µm x 0.0.937; oz/ft2= µm x 0.02316; g/m2 = µm x 7.067

The time to first maintenance of hot-dip galvanized steel is directly proportional to the thickness of the hot-dip galvanized coating. With all other variables held constant, the thicker the zinc coating, the longer the life of the steel. The aim of the finish and appearance requirements is to ensure no coatings have problem areas that are deficient of zinc or have surface defects that would interfere with the intended use of the product. In addition, the coating should have a strong adherence throughout the service of the hot-dip galvanized steel.
